DX140LC
-01.jpg)
-01.jpg)
Model :DX140LC
Engine :DEVELON DL06
Nominal flywheel power:95HP@1,850rpm(SAEJ1349)
Operating weight:13,800 KG
As a top excavator factory and crawler excavator factory, we provide a variety of crawler-type excavators in different sizes and specifications.
Add to inquiry
Engine :DEVELON DL06
Nominal flywheel power:95HP@1,850rpm(SAEJ1349)
Operating weight:13,800 KG
As a top excavator factory and crawler excavator factory, we provide a variety of crawler-type excavators in different sizes and specifications.
Technical Specification
| Category | Item | Unit |
|
| Engine | Model | DEVELON DL06 | |
| Nominal flywheel power | HP/rpm | 95HP@1,850 rpm (SAEJ1349) | |
| Max torque | kgf.m/rpm | 44.5kgf.m/1400rpm | |
| Piston displacement | c.c | 5,890 | |
|
Hydraulic System |
Main pumps maxflow | L/min | 2x114 |
| Drive | Swing speed | rpm | 10.7 |
| Travel speed(fast/slow) | km/hr | 4.7/3.0 | |
| Maximum grade | ˚ | 35˚ | |
| Maximum traction force | ton | 12 | |
| Refill Capacities | Fuel tank | L | 280 |
| Oil tank | L | 150 |

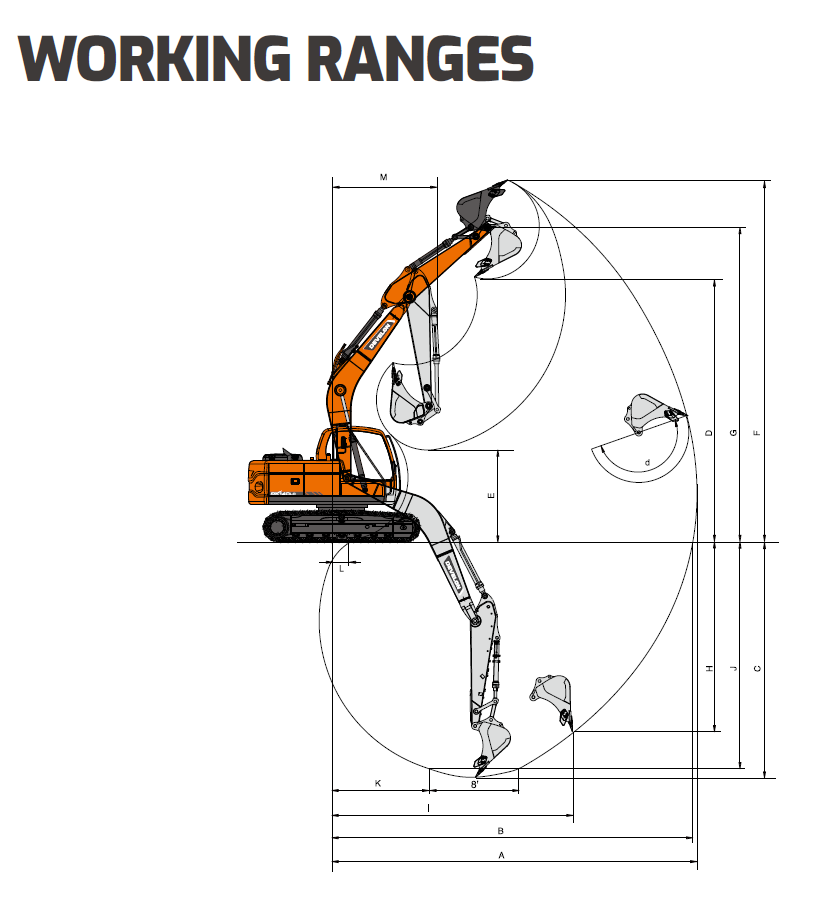

Working Ranges
| A | Max. digging reach | mm | 8,300 |
| B | Max. digging reach at ground level | mm | 8,156 |
| C | Max. digging depth | mm | 5,645 |
| D | Max. dumping height | mm | 6,300 |
| E | Min. dumping height | mm | 2,166 |
| F | Max. digging height | mm | 8,675 |
| G | Max. bucket pin height | mm | 7,535 |
| H | Max. vertical wall depth | mm | 4,560 |
| I | Max. radius vertical | mm | 5,555 |
| J | Max. digging depth(8’level) | mm | 5,420 |
| K | Min. radius 8’ line | mm | 1,960 |
| L | Min. digging reach | mm | 265 |
| M | Min. swing radius | mm | 2,375 |
| D. | Bucket angle (deg) | ˚ | 173˚ |

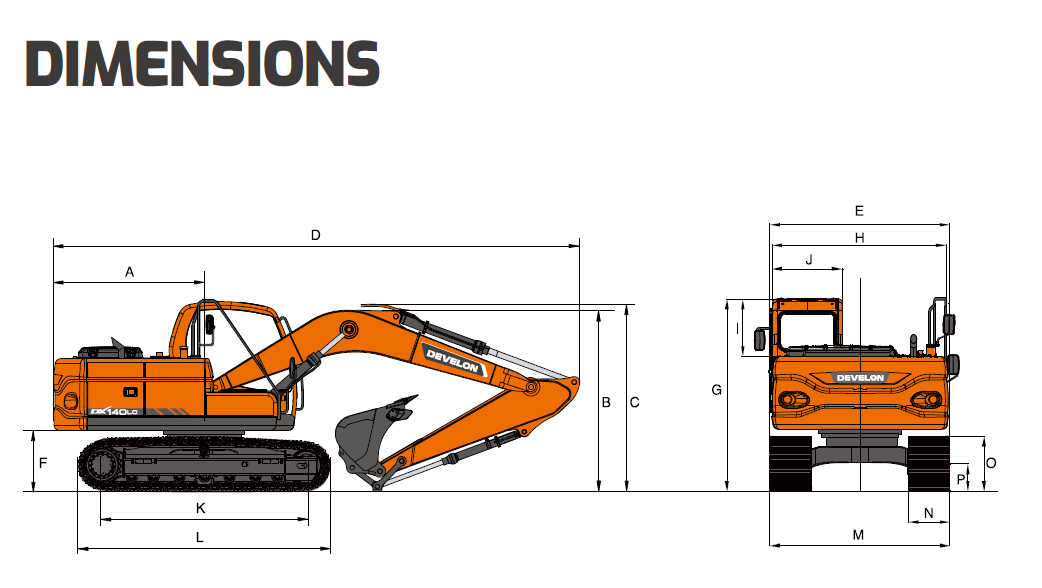

Dimensions
| Boom type | mm | 4,600 | |
| Arm type | mm | 2,500 | |
| A | Tail Swing Radius | mm | 2,200 |
| B | Shipping Height(Boom) | mm | 2,630 |
| C | Shipping Height(Hose) | mm | 2,710 |
| D | Shipping Length | mm | 7,680 |
| E | Shipping Width | mm | 2,590 |
| F | Weight Clearance | mm | 894 |
| G | Height Over Cab. | mm | 2,773 |
| H | House Width | mm | 2,540 |
| I | Cab. Height above House | mm | 835 |
| J | Cab. Width | mm | 960 |
| K | Tumbler Distance | mm | 3,034 |
| L | Track Length | mm | 3,755 |
| M | Undercarriage Width | mm | 2,590 |
| N | Shoe Width | mm | 600 |
| O | TracK Height | mm | 728 |
| P | Car Body Clearance | mm | 410 |
